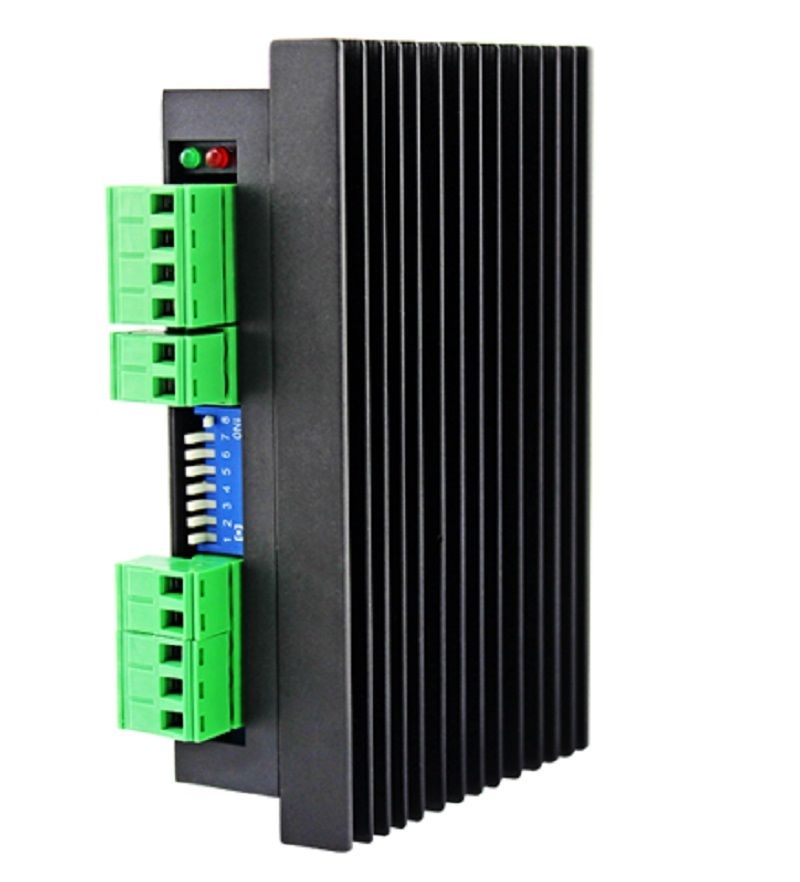

3phase NEMA23 NEMA34 hybrid stepper motor driver DSP DC20V-50V 5.7A 3MC5

Product Name: three-phase 57/86 digitalstepping driver 3MC580

The3MC580 digital stepping driver adopts a new generation of DSP technology, whichis suitable for driving three-phase 57/86 stepping motors. Drive voltage:DC20V~50V, maximum drive current 8A. It can set any subdivision within 256 andany current value in rated current to meet the application requirements of mostmedium and small equipment. The internal self tuning function is adopted in thedrive, and the optimum parameters can be automatically generated for differentmotors without manual adjustment, so that the motor performance can beoptimized.

Product features:

driving 3 wire /6 wire Three phase steppingmotor

Signal input: differential / single ended,pulse / direction or double pulse, 5~24VDC level compatible

You can set parameters through the serialport

The automatic setting function of power onparameters can be set up

The precision current control greatlyreduces the heating of the motor

At rest the current is automatically halved

Photoelectric isolation washing your input,anti-interference ability

It has overvoltage, overcurrent and otherprotection functions

Control signal interface

Application:

Suitable for all kinds of motion controlautomation equipment and instruments, such as electronic processing andtesting, semiconductor packaging, laser cutting and welding, laser printing,packaging machinery, engraving machine, marking machine, cutting machine,apparel plotter, CNC machine tools, automatic assembly equipment etc.. It isthe first choice for users with low noise, high speed performance andcompetitive cost performance.
