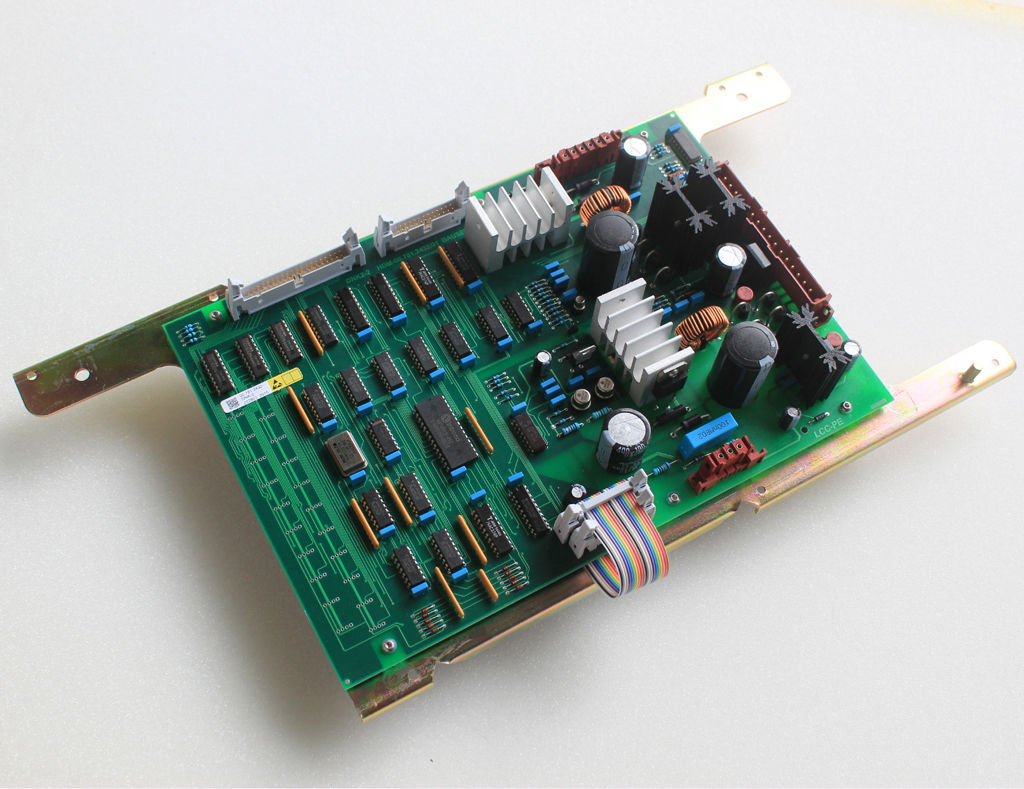

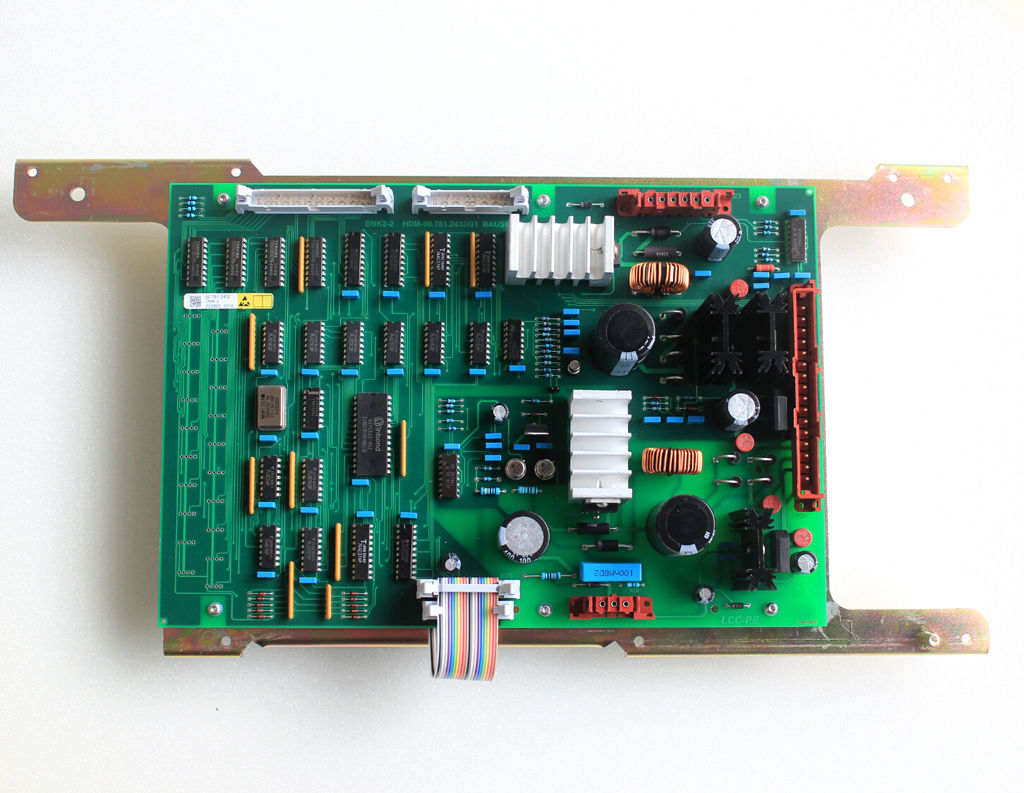

DNK4 Module MV.036.387 00.785.0353 Heidelberg 9.4" CP Tronic Display Com

Support part number: M3.036.387 /00.785.0353

Compatible plasma models:

1) MD400F640PD1A plasma screen

2) OKAYA PG640400RA4-3 plasma screen

3) OKI PG640400RA4 plasma screen .

and nearly all other CP Tronic Display.

If you are not sure about it, just feelfree to contact with us.

All the display are tested in goodcondition before shipment. 1 year warranty.

How to install :

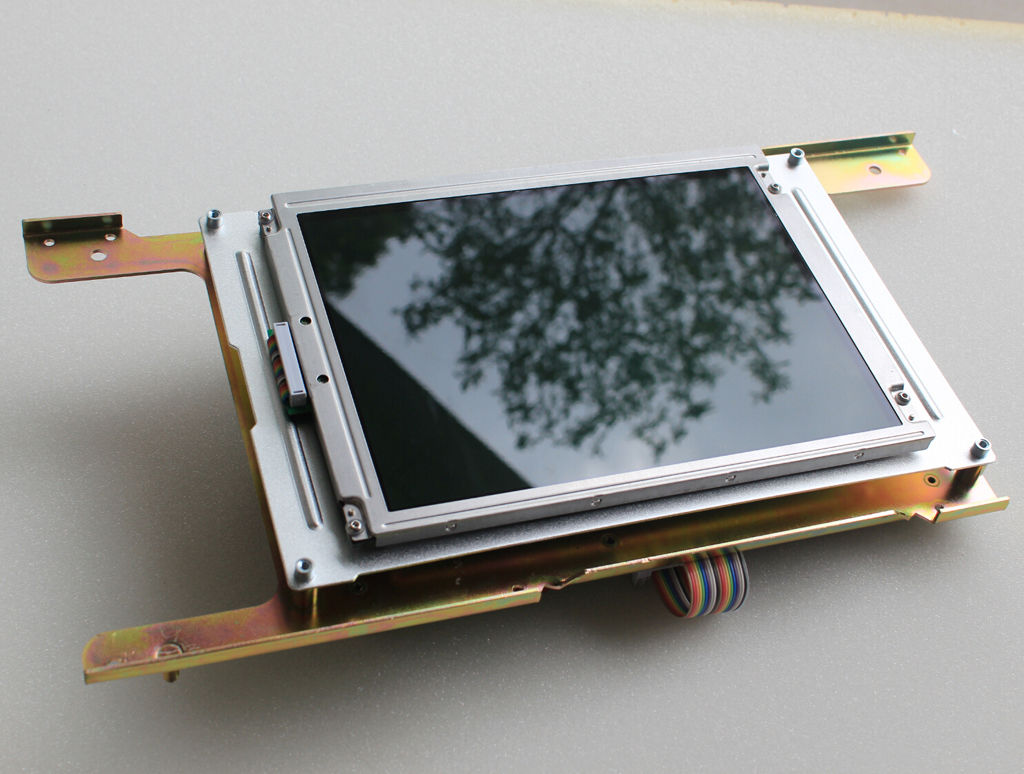

CP window screen is absolutely compatibleand original plasma screen refresh rate exactly the same, except that thecolors and stronger contrast, higher contrast and more detailed.

After installation, the interface, fontsand patterns with the original graphics exactly the same. Words and graphics 8colors adjustable background color 8-color adjustable color are: red, green,blue, yellow, blue, purple, black, white.

Installation is simple, just after theoriginal plasma screen in the original and other original interface cable ionsremoved

Direct (interface without any changes) tothe CP window panel interfaces,

The CP window fully supports 16-pin and20-pin variety CP TRONIC screen interface model. That is 100% support of all CPTRONIC models. The CP window with adaptive function, automatic identificationsignal that the two models

1) Remove the damaged plasma screen fromframe

2) use of the original four M4 screws toPG400640RA9-LED CP compatible screen window fixed and mounted on the frame

3) collated screen frame line, attached tothe back of the control panel

4) the effect after installation systemdisplays
