3phase 220V 3800w 3.8kw 15N.m 2500rpm 130mm AC servo motor drive kit 250

3phase 220V 3800w 3.8kw 15N.m 2500rpm130mm AC servo motor drive kit 2500ppr with 3m cable

Package including:

If you need the servo motor with brake,please contact with us.

If you need longer cable for this servosystem, please write us .we can offer 5m,10m,15m,20m length cables.

Please leave your email address to get theuser manual of the servo driver if you need.

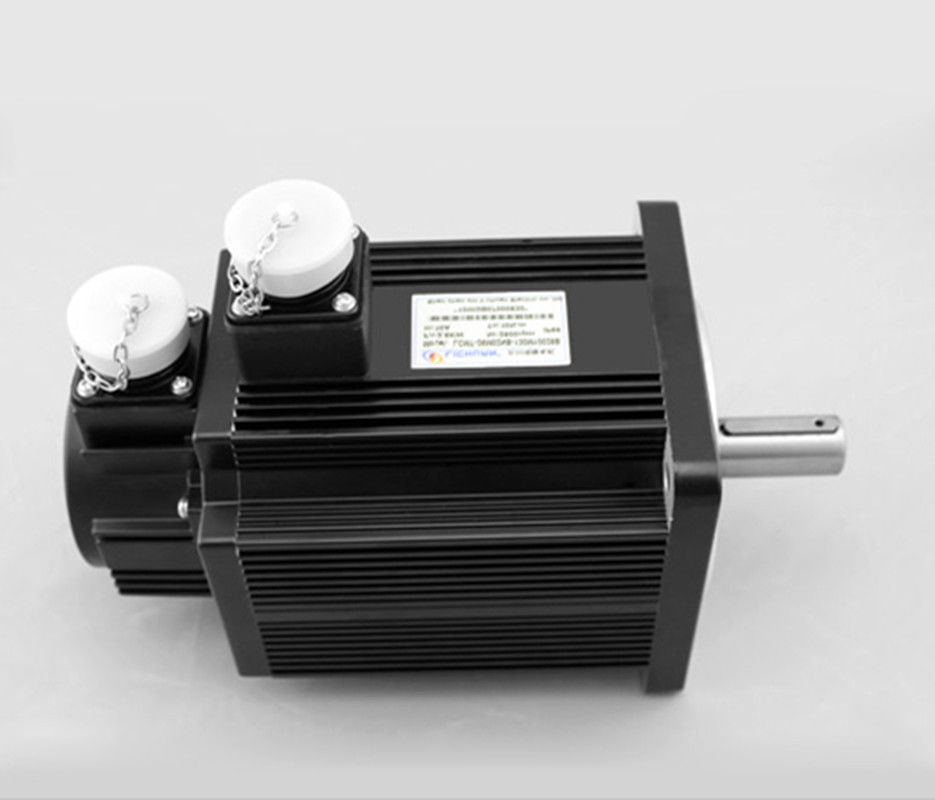

 Lichuan Servo MotorNaming Rules

   LCMT - 02 L 02 N B - 60 M006 30 B

·        LCMT--- Product information

·        02-------- 200W ( 04---400W/  07---750W /  10---1KW )

·        L---------- Motor inertia ( L---low /M---middle )

·        02-------- Sensing form ( 01---line savingencoder 2500     02---15 type encoder 2500 )

·        N---------- Without brake (Z---with brake )

·        B--------- only keyway no oilseal ( A---only oil seal no keyway  C---oil seal and keyway )

·        60-------- Frame size

·        M006---  Torque

·        30-------- Speed

·        B---------  B series ( A--- A series /C--- C series )

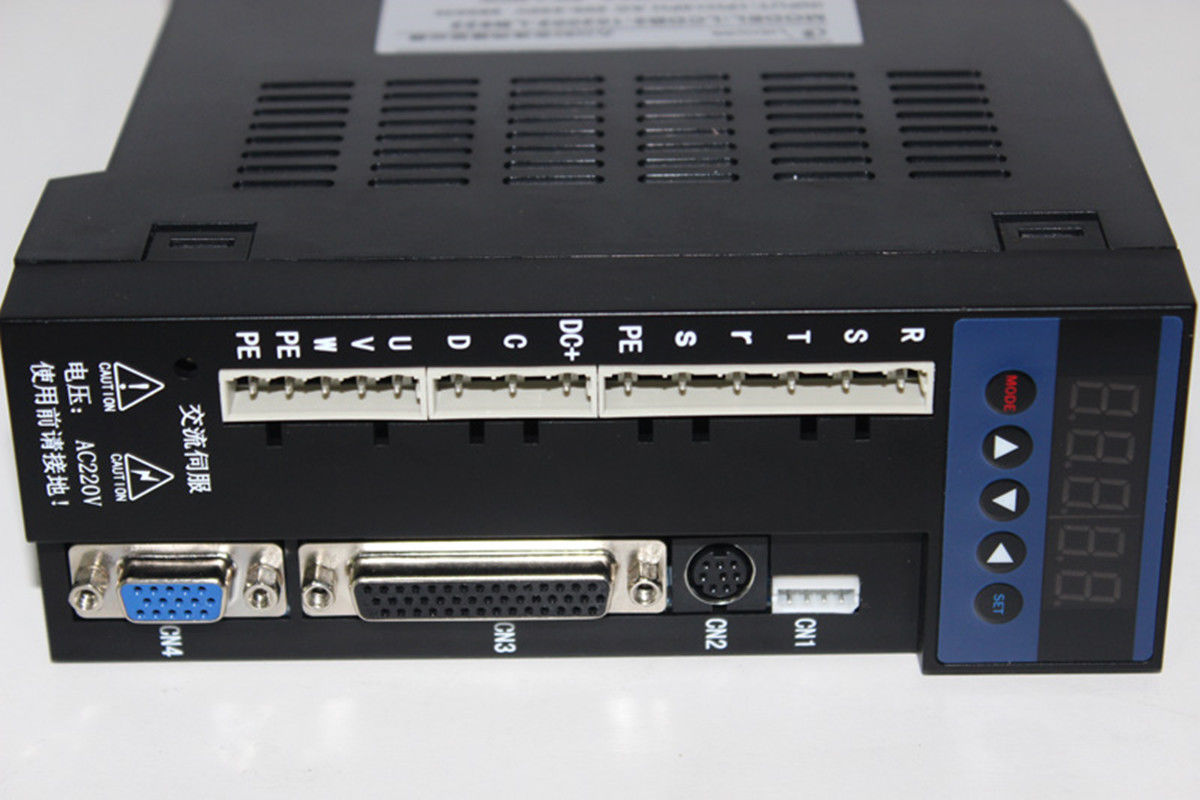

Lichuan Servo Driver Naming Rules

    LCDB2 - 02 20 02 - L B 6 22

·        LCDB2-- Product information

·        02-------- Motor power  (02---200W 04---400W /  07---750W /  10---1KW... )

·        20-------- Peak current ( 20---20A / 30---30A/ 50---50A / 75---75A )

·        02-------- Encoder information ( 01---linesaving encoder  / 02---15 type encoder )

·        L---------- Motor inertia ( L---low /M---middle )

·        B---------Driver series (A---A series / B---B series / C---C series )

·        6--------- Frame size ( including 6 /  8  /  9  /  110 ... )

·        22-------- Voltage ( 22---single phase 220v /32---3 phase 220v / 34---3 phase 380v )

3800W servo Motor LCMT-38M02NB-130M15025B Parameters Overviews
