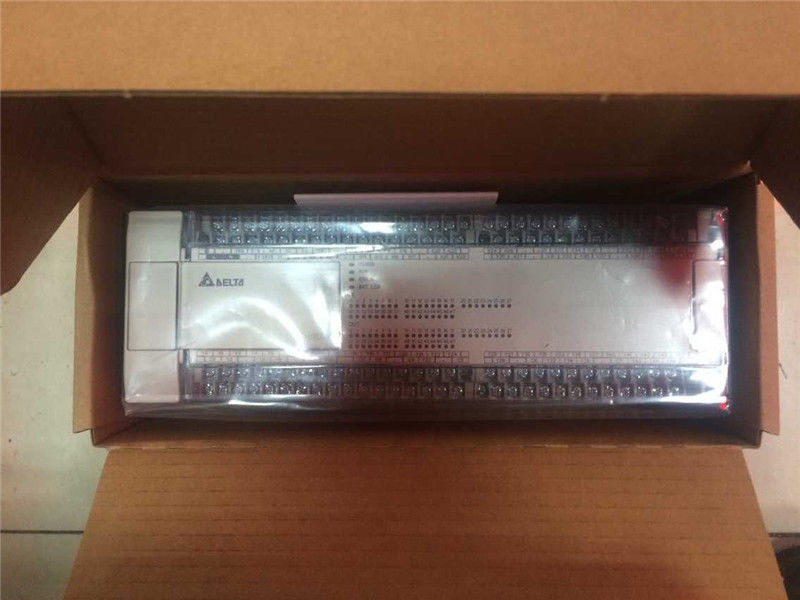

DVP80EH00T3 Delta EH2/EH3 Series PLC DI 40 DO 40 Transistor output 100-2

2, Specifications

The newgeneration DVP-EH3 PLC is the high-end model of the Delta DVP-E series. Itprovides larger program capacity and data registers for more demanding andcomplex applications.

ExcellentMotion Control

         High-speed pulse output: 4 axesof 200kHz pulse output (DVP40/48/64/80EH00T3)

         Supports max. 4 hardware 200kHzhigh-speed counters

         Increases many motion controlinstructions to meet applications that require high-speed and high-precisionpositioning control such as labeling machines, packaging machines and printingmachines

         Offers linear/arc interpolationmotion control

         Provides up to 16 externalinterrupt pointers

CompleteProgram Protection

         Auto backup function to preventthe loss of programs and data even when the battery runs out

         Second copy function provides abackup for extra insurance when one set of programs and data are damaged

         Up to 4-level passwordprotection for your source programs and intellectual property

         Outstanding Operation Performance

         32-bit CPU + ASIC dual processorssupport floating point operations.

         The max. execution speed of basicinstructions is able to reach 0.24μs.

         Flexible Function ExtensionModules & Cards

         Multiple selections of extensionmodules and function cards provide analog I/O, temperature measurement,additional single-axis motion control, high-speed counting, 3rd serialcommunication port and Ethernet communication card are available.

         PLC Link

         PLC Link allows users to link up a max. of 32 units to thenetwork without having to install extra communication extension modules.

 Payment : we only accept Paypal for online shopping.

shipment:We use DHL,EMS as shipment method in normal.

Guarantee:1 year quality warranty.
