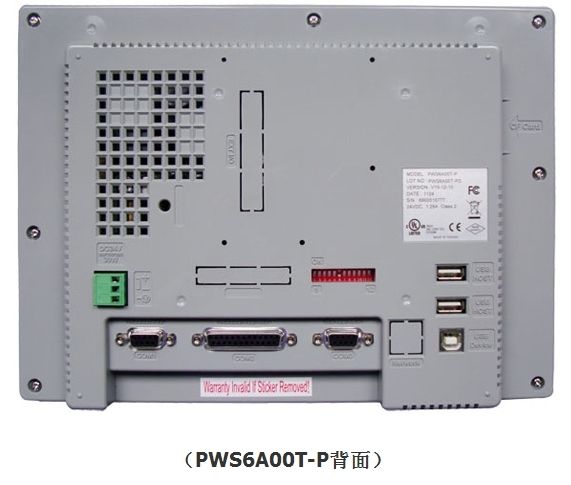

PWS6A00T-P HITECH HMI Touch Screen 10.4inch 640x480 new in box

Item

PWS6A00T-P

Display Type

TFT LCD

Display Color

64K colors

Display Size

10.4” (diagonal); display area is 213.2X160.4mm

Name of Pixels

640x480; Number of 8x8 characters displayable 80x60

Back Light

CCFT; Lifetime 50,000 hours @25 ºC

Touch Screen

Analog

Keypad

1“Menu” Key and user-defined Function keys(F1….F7)

Keypad Pressure& Lifetime

350±50gf operating force, Lifetime is over 1 million activations

Input Power

24VDC±15%; less than 30W

Flash ROM

8 M bytes

RAM

512 K bytes

CPU

32 bits RISC

Battery Backed Memory

512 K bytes

RTC

Yes

Data/Recipe

512K bytes

Data Storage(CF card)

Yes

COM1

9-pin female connector : RS232/RS485

COM2

25-pin female connector : RS232/RS422/RS485

COM3

9-pin female connector:RS422/RS485

USB Master

2 Ports

USB Device

1 Port

Multi-functional Port

—

Ethernet

—

Front Panel Seal

IP65

Ambient Temperature

0~50°C

Storage Temperature

-10~60°C

Ambient Humidity

10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing

Vibration Endurance

0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions

Shock Endurance

10G, 11ms three times in each direction of X, Y, and Z axes

CE

EN61000-6-4,EN61000-6-2

External Dimensions(mm)

297.0(W) x 222.0(H) x 52.3(D)

Cut-out Dimensions (mm)

286.0 x 211.0

Weight

1.9 Kg

Colling

Natural cooling
