single phase 220V 600W 0.6KW 1.91N.m 3000rpm 60mm AC servo motor drive k

1phase 220V 600W 0.6KW 1.91N.m 3000rpm60mm AC servo motor drive kit 2500ppr with 3m cable

Package including:

If you need the servo motor with brake,please contact with us.

If you need longer cable for this servo system,please write us .we can offer 5m,10m,15m,20m length cables.

Please leave your email address to get theuser manual of the servo driver if you need.

 Lichuan Servo MotorNaming Rules

   LCMT - 02 L 02 N B - 60 M006 30 B

·        LCMT--- Product information

·        02-------- 200W ( 04---400W/  07---750W /  10---1KW )

·        L---------- Motor inertia ( L---low /M---middle )

·        02-------- Sensing form ( 01---line savingencoder 2500     02---15 type encoder 2500 )

·        N---------- Without brake (Z---with brake )

·        B--------- only keyway no oilseal ( A---only oil seal no keyway  C---oil seal and keyway )

·        60-------- Frame size

·        M006---  Torque

·        30-------- Speed

·        B---------  B series ( A--- A series /C--- C series )

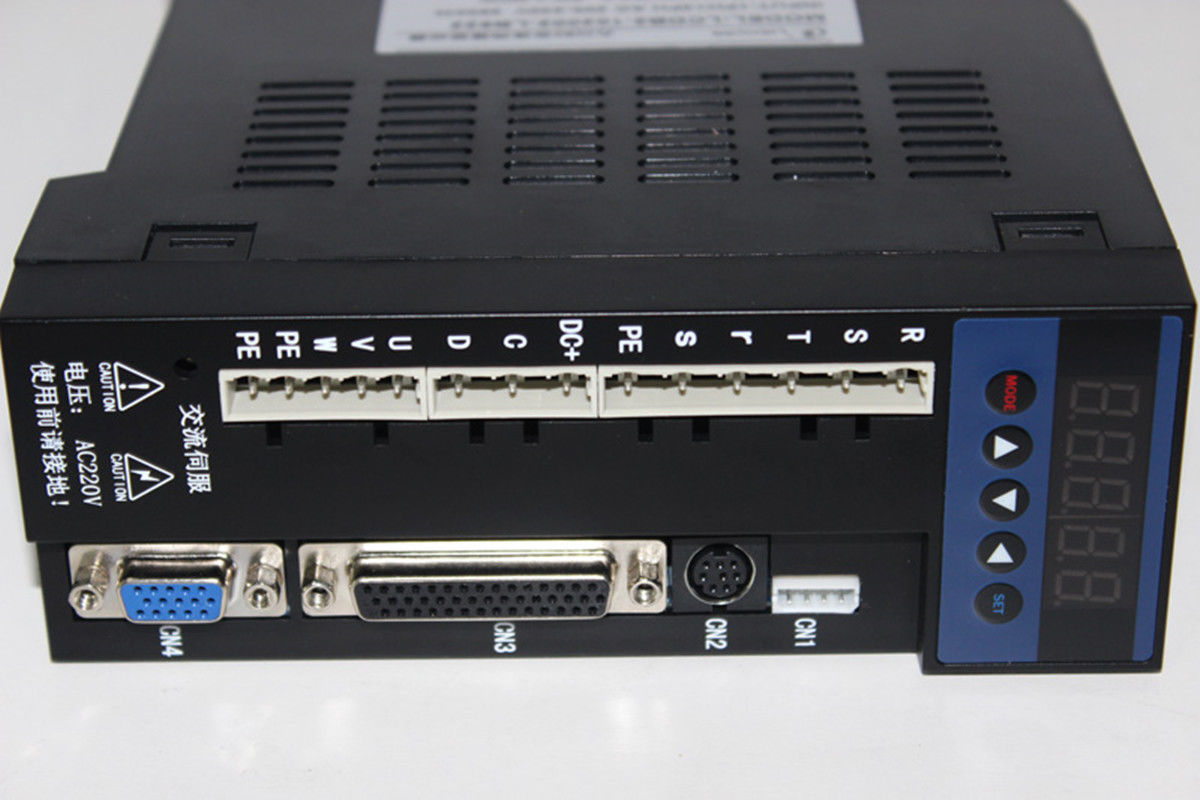

Lichuan Servo Driver Naming Rules

    LCDB2 - 02 20 02 - L B 6 22

·        LCDB2-- Product information

·        02-------- Motor power  (02---200W 04---400W /  07---750W /  10---1KW... )

·        20-------- Peak current ( 20---20A / 30---30A/ 50---50A / 75---75A )

·        02-------- Encoder information ( 01---linesaving encoder  / 02---15 type encoder )

·        L---------- Motor inertia ( L---low /M---middle )

·        B---------Driver series (A---A series / B---B series / C---C series )

·        6--------- Frame size ( including 6 /  8  /  9  /  110 ... )

·        22-------- Voltage ( 22---single phase 220v /32---3 phase 220v / 34---3 phase 380v )

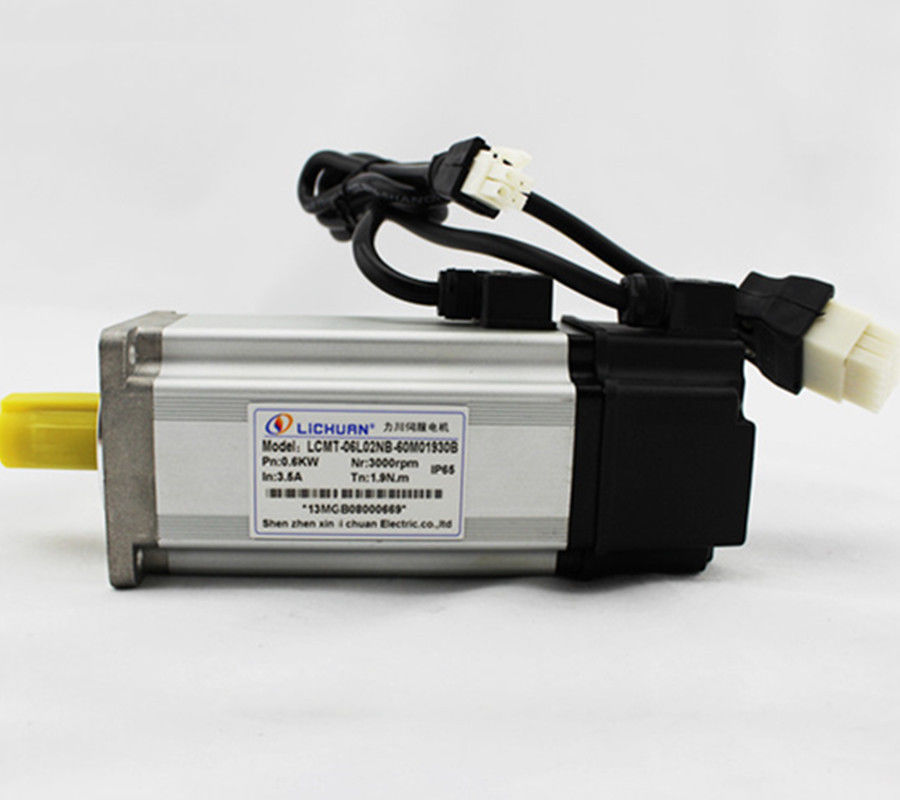

600W servo Motor LCMT-06L02NB-60M01930B Parameters Overviews
